gcn::DropDown Class Reference

#include <dropdown.h>

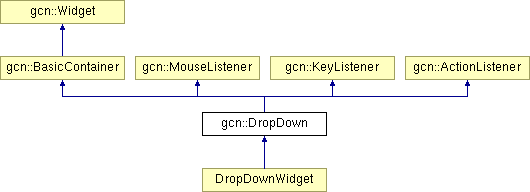

Inheritance diagram for gcn::DropDown:

gcn::BasicContainer gcn::MouseListener gcn::KeyListener gcn::ActionListener gcn::Widget DropDownWidget

List of all members.

Public Member Functions

 DropDown ()
 DropDown (ListModel *listModel)
 DropDown (ListModel *listModel, ScrollArea *scrollArea, ListBox *listBox)
virtual ~DropDown ()
virtual int getSelected ()
virtual void setSelected (int selected)
virtual void setListModel (ListModel *listModel)
virtual ListModel * getListModel ()
virtual void setScrollArea (ScrollArea *scrollArea)
virtual ScrollArea * getScrollArea ()
virtual void setListBox (ListBox *listBox)
virtual ListBox * getListBox ()
virtual void adjustHeight ()
virtual void draw (Graphics *graphics)
virtual void drawBorder (Graphics *graphics)
virtual bool _keyInputMessage (const KeyInput &keyInput)
virtual void logic ()
virtual void _mouseInputMessage (const MouseInput &mouseInput)
virtual void lostFocus ()
virtual void setBaseColor (const Color &color)
virtual void setBackgroundColor (const Color &color)
virtual void setForegroundColor (const Color &color)
virtual void moveToTop (Widget *widget)
virtual void moveToBottom (Widget *widget)
virtual void _announceDeath (Widget *widget)
virtual void getDrawSize (int &width, int &height, Widget *widget)
virtual void action (const std::string &eventId)
virtual bool keyPress (const Key &key)
virtual void mousePress (int x, int y, int button)
virtual void mouseRelease (int x, int y, int button)
virtual void setFont (Font *font)
virtual bool getDirty () const

Protected Member Functions

virtual void drawButton (Graphics *graphics)
virtual void dropDown ()
virtual void foldUp ()

Protected Attributes

bool mDroppedDown
bool mPushed
int mOldH
ScrollArea * mScrollArea
ListBox * mListBox
ScrollArea * mDefaultScrollArea
ListBox * mDefaultListBox
FocusHandler mFocusHandler

Detailed Description

A drop down box from which you can select different values. It is one of the most complicated Widgets you will find in Guichan. For drawing the DroppedDown box it uses one ScrollArea and one ListBox. It also uses an internal FocusHandler to handle the focus of the internal ScollArea and ListBox. DropDown uses a ListModel to handle the list. To be able to use DropDown you must give DropDown an implemented ListModel which represents your list.

Definition at line 78 of file dropdown.h.

Constructor & Destructor Documentation

gcn::DropDown::DropDown (  )

Constructor.

Definition at line 60 of file dropdown.cpp.

References gcn::ScrollArea::_setFocusHandler(), gcn::Widget::_setParent(), gcn::Widget::addActionListener(), gcn::Widget::addKeyListener(), gcn::Widget::addMouseListener(), adjustHeight(), mDefaultListBox, mDefaultScrollArea, mDroppedDown, mFocusHandler, mListBox, mOldH, mPushed, mScrollArea, gcn::Widget::setBorderSize(), gcn::ScrollArea::setContent(), gcn::Widget::setFocusable(), gcn::ScrollArea::setHorizontalScrollPolicy(), gcn::Widget::setWidth(), and gcn::ScrollArea::SHOW_NEVER.

gcn::DropDown::DropDown ( ListModel *  listModel  )

Contructor.

Parameters:
listModel the ListModel to use.
See also:
ListModel.

Definition at line 87 of file dropdown.cpp.

References gcn::ScrollArea::_setFocusHandler(), gcn::Widget::_setParent(), gcn::Widget::addActionListener(), gcn::Widget::addKeyListener(), gcn::Widget::addMouseListener(), adjustHeight(), gcn::ListBox::getSelected(), mDefaultListBox, mDefaultScrollArea, mDroppedDown, mFocusHandler, mListBox, mOldH, mPushed, mScrollArea, gcn::Widget::setBorderSize(), gcn::ScrollArea::setContent(), gcn::Widget::setFocusable(), gcn::ScrollArea::setHorizontalScrollPolicy(), setListModel(), gcn::ListBox::setSelected(), gcn::Widget::setWidth(), and gcn::ScrollArea::SHOW_NEVER.

gcn::DropDown::DropDown ( ListModel *  listModel,
ScrollArea *  scrollArea,
ListBox *  listBox
)

Contructor.

Parameters:
listModel the ListModel to use.
scrollArea the ScrollArea to use.
listBox the listBox to use.
See also:
ListModel, ScrollArea, ListBox.

Definition at line 121 of file dropdown.cpp.

References gcn::ScrollArea::_setFocusHandler(), gcn::Widget::_setParent(), gcn::Widget::addActionListener(), gcn::Widget::addKeyListener(), gcn::Widget::addMouseListener(), adjustHeight(), gcn::ListBox::getSelected(), mDefaultListBox, mDefaultScrollArea, mDroppedDown, mFocusHandler, mListBox, mOldH, mPushed, mScrollArea, gcn::Widget::setBorderSize(), gcn::ScrollArea::setContent(), gcn::Widget::setFocusable(), setListModel(), gcn::ListBox::setSelected(), and gcn::Widget::setWidth().

gcn::DropDown::~DropDown (  )  [virtual]

Destructor.

Definition at line 155 of file dropdown.cpp.

References gcn::ScrollArea::_setFocusHandler(), mDefaultListBox, mDefaultScrollArea, mListBox, mScrollArea, gcn::Widget::removeActionListener(), and gcn::Widget::widgetExists().

Member Function Documentation

int gcn::DropDown::getSelected (  )  [virtual]

Gets the index int the ListModel of the selected element.

Returns:
the selected element.

Definition at line 339 of file dropdown.cpp.

References GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::ListBox::getSelected(), mListBox, and mScrollArea.

void gcn::DropDown::setSelected ( int  selected  )  [virtual]

Sets the ListModel index of the selected element.

Parameters:
selected the ListModel index of the selected element.

Definition at line 349 of file dropdown.cpp.

References GCN_EXCEPTION, gcn::ScrollArea::getContent(), mListBox, mScrollArea, and gcn::ListBox::setSelected().

void gcn::DropDown::setListModel ( ListModel *  listModel  )  [virtual]

Sets the ListModel to use.

Parameters:
listModel the ListModel to use.

Definition at line 405 of file dropdown.cpp.

References adjustHeight(), GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::ListBox::getSelected(), mListBox, mScrollArea, gcn::ListBox::setListModel(), and gcn::ListBox::setSelected().

Referenced by DropDown(), and DropDownWidget::setList().

ListModel * gcn::DropDown::getListModel (  )  [virtual]

Gets the ListModel used.

Returns:
the ListModel used.

Definition at line 422 of file dropdown.cpp.

References GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::ListBox::getListModel(), mListBox, and mScrollArea.

void gcn::DropDown::setScrollArea ( ScrollArea *  scrollArea  )  [virtual]

Sets the ScrollArea to use.

Parameters:
scrollArea the ScrollArea to use.

Definition at line 432 of file dropdown.cpp.

References gcn::ScrollArea::_setFocusHandler(), gcn::Widget::_setParent(), adjustHeight(), mFocusHandler, mListBox, mScrollArea, and gcn::ScrollArea::setContent().

ScrollArea * gcn::DropDown::getScrollArea (  )  [virtual]

Gets the ScrollArea used.

Returns:
the ScrollArea used.

Definition at line 443 of file dropdown.cpp.

References mScrollArea.

void gcn::DropDown::setListBox ( ListBox *  listBox  )  [virtual]

Sets the ListBox to use.

Parameters:
listBox the ListBox to use.

Definition at line 448 of file dropdown.cpp.

References gcn::Widget::addActionListener(), gcn::ScrollArea::getContent(), gcn::ListBox::getListModel(), gcn::ListBox::getSelected(), mListBox, mScrollArea, gcn::Widget::removeActionListener(), gcn::ScrollArea::setContent(), gcn::ListBox::setListModel(), and gcn::ListBox::setSelected().

ListBox * gcn::DropDown::getListBox (  )  [virtual]

Gets the ListBox used.

Returns:
the ListBox used.

Definition at line 469 of file dropdown.cpp.

References mListBox.

Referenced by DropDownWidget::setSize().

void gcn::DropDown::adjustHeight (  )  [virtual]

Adjusts the height of the DropDown fitting it's parents height.

Definition at line 474 of file dropdown.cpp.

References GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::Widget::getFont(), gcn::Font::getHeight(), gcn::Widget::getHeight(), gcn::Widget::getParent(), gcn::Widget::getWidth(), gcn::Widget::getY(), mDroppedDown, mListBox, mOldH, mScrollArea, gcn::Widget::setHeight(), gcn::Widget::setPosition(), and gcn::Widget::setWidth().

Referenced by dropDown(), DropDown(), foldUp(), setListModel(), and setScrollArea().

void gcn::DropDown::draw ( Graphics *  graphics  )  [virtual]

Draws the Widget. It is called by the parent widget when it is time for the Widget to draw itself. The graphics object is set up so that all drawing is relative to the Widget, i.e coordinate (0,0) is the top-left corner of the Widget. It is not possible to draw outside of a Widgets dimension.

Parameters:
graphics a Graphics object to draw with.

Implements gcn::Widget.

Definition at line 189 of file dropdown.cpp.

References gcn::Color::a, gcn::ScrollArea::draw(), drawButton(), gcn::Graphics::drawLine(), gcn::Graphics::drawRectangle(), gcn::Graphics::drawText(), gcn::Graphics::fillRectangle(), GCN_EXCEPTION, gcn::Widget::getBackgroundColor(), gcn::Widget::getBaseColor(), gcn::ScrollArea::getContent(), gcn::Widget::getDimension(), gcn::ListModel::getElementAt(), gcn::Widget::getFont(), gcn::Widget::getForegroundColor(), gcn::Font::getHeight(), gcn::Widget::getHeight(), gcn::ListBox::getListModel(), gcn::ListBox::getSelected(), gcn::Widget::getWidth(), gcn::Widget::hasFocus(), mDroppedDown, mListBox, mOldH, mScrollArea, gcn::Graphics::popClipArea(), gcn::Graphics::pushClipArea(), gcn::Graphics::setColor(), and gcn::Graphics::setFont().

void gcn::DropDown::drawBorder ( Graphics *  graphics  )  [virtual]

Draws a the Widget border. A border is drawn around a Widget. The width and height of the border is therefore the Widgets height+2*bordersize. Think of a painting that has a certain size, the border surrounds the painting.

Parameters:
graphics a Graphics object to draw with.

Reimplemented from gcn::Widget.

Definition at line 250 of file dropdown.cpp.

References gcn::Color::a, gcn::Graphics::drawLine(), gcn::Widget::getBaseColor(), gcn::Widget::getBorderSize(), gcn::Widget::getHeight(), gcn::Widget::getWidth(), and gcn::Graphics::setColor().

bool gcn::DropDown::_keyInputMessage ( const KeyInput &  keyInput  )  [virtual]

Called when a Widget recieves a KeyInput.

WARNING: This function is used internally to handle all key messages. Don't call or overload it unless you know what you are doing.

Parameters:
keyInput the KeyInput message.

Reimplemented from gcn::Widget.

Definition at line 536 of file dropdown.cpp.

References gcn::Widget::_keyInputMessage(), GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::FocusHandler::getFocused(), mDroppedDown, mFocusHandler, and mScrollArea.

void gcn::DropDown::logic (  )  [virtual]

Called for all Widgets in the gui each time Gui::logic is called. You can do logic stuff here like playing an animation.

See also:
Gui

Reimplemented from gcn::Widget.

Definition at line 178 of file dropdown.cpp.

References gcn::FocusHandler::applyChanges(), GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::ScrollArea::logic(), mFocusHandler, and mScrollArea.

void gcn::DropDown::_mouseInputMessage ( const MouseInput &  mouseInput  )  [virtual]

Called when a Widget recieves a MouseInput.

WARNING: This function is used internally to handle all mouse messages. Don't call or overload it unless you know what you are doing.

Parameters:
mouseInput the MouseInput message.

Reimplemented from gcn::Widget.

Definition at line 560 of file dropdown.cpp.

References gcn::ScrollArea::_mouseInputMessage(), gcn::Widget::_mouseInputMessage(), GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::Widget::getY(), gcn::Widget::hasFocus(), mDroppedDown, mListBox, mOldH, mScrollArea, and gcn::MouseInput::y.

void gcn::DropDown::lostFocus (  )  [virtual]

Called if the Widget loses focus.

Reimplemented from gcn::Widget.

Definition at line 586 of file dropdown.cpp.

References foldUp().

void gcn::DropDown::setBaseColor ( const Color &  color  )  [virtual]

Sets the base color. The base color is the background color for many Widgets like the Button and Contianer Widgets.

Parameters:
color the baseground Color.

Reimplemented from gcn::Widget.

Definition at line 645 of file dropdown.cpp.

References mDefaultListBox, mDefaultScrollArea, mListBox, mScrollArea, and gcn::Widget::setBaseColor().

void gcn::DropDown::setBackgroundColor ( const Color &  color  )  [virtual]

Sets the background color.

Parameters:
color the background Color.

Reimplemented from gcn::Widget.

Definition at line 660 of file dropdown.cpp.

References mDefaultListBox, mDefaultScrollArea, mListBox, mScrollArea, and gcn::Widget::setBackgroundColor().

void gcn::DropDown::setForegroundColor ( const Color &  color  )  [virtual]

Sets the foreground color.

Parameters:
color the foreground Color.

Reimplemented from gcn::Widget.

Definition at line 675 of file dropdown.cpp.

References mDefaultListBox, mDefaultScrollArea, mListBox, mScrollArea, and gcn::Widget::setForegroundColor().

void gcn::DropDown::moveToTop ( Widget *  widget  )  [virtual]

Moves a Widget to the top of the BasicContainer. The widget will be drawn above all other Widgets in the BasicContainer.

Parameters:
widget the Widget to move.

Implements gcn::BasicContainer.

Definition at line 591 of file dropdown.cpp.

References gcn::Widget::getParent(), and gcn::BasicContainer::moveToTop().

void gcn::DropDown::moveToBottom ( Widget *  widget  )  [virtual]

Moves a widget to the bottom of the BasicContainer. The Widget will be drawn below all other Widgets in the BasicContainer.

Parameters:
widget the Widget to move.

Implements gcn::BasicContainer.

Definition at line 599 of file dropdown.cpp.

References gcn::Widget::getParent(), and gcn::BasicContainer::moveToBottom().

void gcn::DropDown::_announceDeath ( Widget *  widget  )  [virtual]

Called when a child of the BasicContainer gets destroyed.

Parameters:
widget the destroyed Widget.

Implements gcn::BasicContainer.

Definition at line 607 of file dropdown.cpp.

References GCN_EXCEPTION, and mScrollArea.

void gcn::DropDown::getDrawSize ( int &  width,
int &  height,
Widget *  widget
) [virtual]

Gets the drawing space size a Widget has in the BasicContainer. It may not be the same size as the Widgets width and height.

NOTE: Size is not checked recursively all the way back to the top Widget. If the BasicContainer itself is clipped, the size may be inaccurate.

Parameters:
width the width the Widget's draw space has.
height the height the Widget's draw space has.
widget the Widget calling the function.

Implements gcn::BasicContainer.

Definition at line 625 of file dropdown.cpp.

References GCN_EXCEPTION, gcn::Widget::getHeight(), gcn::Widget::getWidth(), mDroppedDown, mOldH, and mScrollArea.

void gcn::DropDown::action ( const std::string &  eventId  )  [virtual]

Called whan an action is recieved from a Widget. It is used to be able to recieve a notification that an action has occured.

Parameters:
eventId the identifier of the Widget.

Implements gcn::ActionListener.

Definition at line 619 of file dropdown.cpp.

References foldUp(), and gcn::Widget::generateAction().

bool gcn::DropDown::keyPress ( const Key &  key  )  [virtual]

Called if a key is pressed when the widget has keyboard focus. If a key is held down the widget will generate multiple key presses.

Parameters:
key the key pressed.

Reimplemented from gcn::KeyListener.

Definition at line 362 of file dropdown.cpp.

References dropDown(), gcn::Key::ENTER, GCN_EXCEPTION, gcn::ScrollArea::getContent(), gcn::Key::getValue(), mDroppedDown, mScrollArea, and gcn::Key::SPACE.

void gcn::DropDown::mousePress ( int  x,
int  y,
int  button
) [virtual]

Called when a mouse button is pressed when the mouse is in the Widget area or if the Widget has focus.

NOTE: A mouse press is NOT equal to a mouse click. Use mouseClickMessage to check for mouse clicks.

Parameters:
x the x coordinate of the mouse relative to the Widget itself.
y the y coordinate of the mouse relative to the Widget itself.
button the button pressed.

Reimplemented from gcn::MouseListener.

Definition at line 378 of file dropdown.cpp.

References dropDown(), foldUp(), gcn::Widget::hasMouse(), gcn::MouseInput::LEFT, mDroppedDown, mOldH, and mPushed.

void gcn::DropDown::mouseRelease ( int  x,
int  y,
int  button
) [virtual]

Called when a mouse button is released when the mouse is in the Widget area or if the Widget has focus.

Parameters:
x the x coordinate of the mouse relative to the Widget itself.
y the y coordinate of the mouse relative to the Widget itself.
button the button released.

Reimplemented from gcn::MouseListener.

Definition at line 397 of file dropdown.cpp.

References gcn::MouseInput::LEFT, and mPushed.

void gcn::DropDown::setFont ( Font *  font  )  [virtual]

Sets the font. If font is NULL, the global font will be used.

Parameters:
font the Font.

Reimplemented from gcn::Widget.

Definition at line 690 of file dropdown.cpp.

References mListBox, and gcn::Widget::setFont().

bool gcn::DropDown::getDirty (  )  const [virtual]

Reimplemented from gcn::Widget.

Definition at line 696 of file dropdown.cpp.

References gcn::Widget::getDirty(), gcn::Widget::mDirty, mDroppedDown, and mScrollArea.

void gcn::DropDown::drawButton ( Graphics *  graphics  )  [protected, virtual]

Draws the button with the little down arrow.

Parameters:
graphics a Graphics object to draw with.

Definition at line 274 of file dropdown.cpp.

References gcn::Color::a, gcn::Graphics::drawLine(), gcn::Graphics::fillRectangle(), gcn::Widget::getBaseColor(), gcn::Widget::getForegroundColor(), gcn::Widget::getHeight(), gcn::Widget::getWidth(), mDroppedDown, mOldH, mPushed, gcn::Graphics::setColor(), and y.

Referenced by draw().

void gcn::DropDown::dropDown (  )  [protected, virtual]

Sets the DropDown Widget to dropped-down mode.

Definition at line 509 of file dropdown.cpp.

References adjustHeight(), gcn::ScrollArea::getContent(), gcn::Widget::getHeight(), gcn::Widget::getParent(), mDroppedDown, mFocusHandler, mOldH, gcn::BasicContainer::moveToTop(), mScrollArea, and gcn::FocusHandler::requestFocus().

Referenced by keyPress(), and mousePress().

void gcn::DropDown::foldUp (  )  [protected, virtual]

Sets the DropDown Widget to folded-up mode.

Definition at line 526 of file dropdown.cpp.

References adjustHeight(), gcn::FocusHandler::focusNone(), mDroppedDown, and mFocusHandler.

Referenced by action(), lostFocus(), and mousePress().

Member Data Documentation

bool gcn::DropDown::mDroppedDown [protected]

Definition at line 247 of file dropdown.h.

Referenced by _keyInputMessage(), _mouseInputMessage(), adjustHeight(), draw(), drawButton(), dropDown(), DropDown(), foldUp(), getDirty(), getDrawSize(), keyPress(), and mousePress().

bool gcn::DropDown::mPushed [protected]

Definition at line 248 of file dropdown.h.

Referenced by drawButton(), DropDown(), mousePress(), and mouseRelease().

int gcn::DropDown::mOldH [protected]

Definition at line 249 of file dropdown.h.

Referenced by _mouseInputMessage(), adjustHeight(), draw(), drawButton(), dropDown(), DropDown(), getDrawSize(), and mousePress().

ScrollArea* gcn::DropDown::mScrollArea [protected]

Definition at line 250 of file dropdown.h.

Referenced by _announceDeath(), _keyInputMessage(), _mouseInputMessage(), adjustHeight(), draw(), dropDown(), DropDown(), getDirty(), getDrawSize(), getListModel(), getScrollArea(), getSelected(), keyPress(), logic(), setBackgroundColor(), setBaseColor(), setForegroundColor(), setListBox(), setListModel(), setScrollArea(), setSelected(), and ~DropDown().

ListBox* gcn::DropDown::mListBox [protected]

Definition at line 251 of file dropdown.h.

Referenced by _mouseInputMessage(), adjustHeight(), draw(), DropDown(), getListBox(), getListModel(), getSelected(), setBackgroundColor(), setBaseColor(), setFont(), setForegroundColor(), setListBox(), setListModel(), setScrollArea(), setSelected(), and ~DropDown().

ScrollArea* gcn::DropDown::mDefaultScrollArea [protected]

Definition at line 252 of file dropdown.h.

Referenced by DropDown(), setBackgroundColor(), setBaseColor(), setForegroundColor(), and ~DropDown().

ListBox* gcn::DropDown::mDefaultListBox [protected]

Definition at line 253 of file dropdown.h.

Referenced by DropDown(), setBackgroundColor(), setBaseColor(), setForegroundColor(), and ~DropDown().

FocusHandler gcn::DropDown::mFocusHandler [protected]

Reimplemented from gcn::Widget.

Definition at line 254 of file dropdown.h.

Referenced by _keyInputMessage(), dropDown(), DropDown(), foldUp(), logic(), and setScrollArea().

The documentation for this class was generated from the following files:
Generated on Sat Feb 21 00:28:27 2009 for Bos Wars by  doxygen 1.5.6
